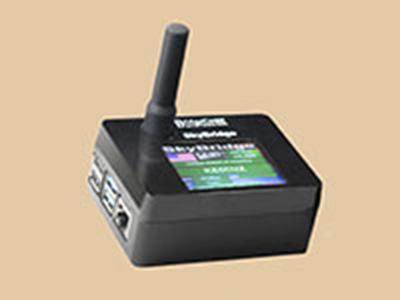

BridgeCom SkyBridge MAX Digital Hotspot
Technical Specifications
The BridgeCom SkyBridge MAX is a high-performance, plug-and-play digital hotspot server designed for amateur radio operations. Serving as a portable internet gateway, it connects digital handheld radios directly to worldwide networks without a physical repeater. Engineered with a quad-core 64-bit computing engine and advanced multi-mode digital voice modem firmware, the system parameters include:
| Engineering Property | Manufacturer Technical Specification Value |
|---|---|
| Supported RF Bands | Dual-band operation covering the 2-meter VHF and 70-centimeter UHF amateur bands |
| RF Power Output Level | Up to 10 Milliwatts max output |
| Antenna Port Termination | Standard SMA Female connector (50 Ohms nominal) |
| Antenna Included Profile | Dual-band VHF and UHF flexible rubber duck style antenna |
| Core Compute Engine | Upgraded Raspberry Pi 4B architecture system |
| Processor Architecture | High-performance Quad-Core ARM Cortex-A72 1.8GHz 64-bit CPU |
| Onboard Memory Capacity | 2 Gigabytes RAM |
| Core System Storage | 16 Gigabytes Micro SD card pre-imaged with the core operating platform |
| Wired Networking Block | RJ45 Ethernet port supporting direct network cable routing |
| Wireless Network Agility | Integrated Wi-Fi interface supporting 2.4 GHz and 5 GHz bands |
| Internet Gateway Routing | Bridges to home routers, network switches, or mobile smartphone hotspots |
| Visual Screen Type | 2.4-inch Full Color TFT LCD Display with user-adjustable brightness controls |
| On-Screen Telemetry Data | Callsign, user name, digital mode symbol, DMR ID number, TX and RX frequencies, active Talkgroup or Node, Bit Error Rate (BER), RSSI, system IP address, time and date, and transmitting country flag |
| Diagnostic Indicators | Dedicated on-board status LEDs tracking Transmit, Receive, Push-to-Talk, and active Mode status |
| Modem Firmware Base | Pre-loaded open-source Multi-Mode Digital Voice Modem (MMDVM) firmware |
| Dashboard Operating System | Standard Pi-Star configuration software or advanced WPSD web interface suite |
| OS Update Engine | Automatic overnight script architecture for system security and firmware refreshes |
| Chassis Dimensions | 1.5 x 3.0 x 3.75 inches housed in a rigid jet-black enclosure with rubberized stability feet |
| Chassis Weight Metrics | 10 ounces total mass weight |
| Primary Power Input | 5 Volts DC via a USB-C input interface port |
| Power Source Compatibility | 110 Volt AC wall bricks, 12 Volt DC vehicle cigarette adapters, or 3,000 to 5,000 mAh external lithium power banks |
| Regulatory Compliance | FCC Part 15 Certified |
Station Role
The BridgeCom SkyBridge hotspot serves as a permanent control room bridge for the W8USR station architecture. It acts as the primary hardware gateway linking local station transceivers directly to global IP-based DMR networks. The unit is permanently wired into the station network infrastructure via Ethernet to guarantee uptime and low latency for incoming and outgoing digital voice streams. We utilize a customized internal radio codeplug featuring a dedicated Favorites List zone programmed into the station transceivers. This zone handles routing for targeted traffic areas, providing the control room with instant access to specific digital repeating loops without scanning the entire worldwide directory.
Active Favorites List Zone Directory
| Talkgroup Node | Channel Designation / Targeted Operating Profile |
|---|---|
| MI 1 DMR Nets (TG 3126) | Primary channel for local and regional traffic, emergency preparedness check-ins, and Michigan statewide amateur nets. |
| NA Astronomy (TG 31175) | Special interest network used by station operators to connect with other amateur radio astronomers, aerospace enthusiasts, and scientific discussion nets across North America. |
| WW Aviation (TG 9102) | Special interest global talkgroup focusing on aviation discussions, pilot nets, and aircraft tracking talk. |
| Military Vets (TG 98008) | A dedicated worldwide network node for active duty military, veterans, and supporters to share regional check-ins and heritage nets. |
| Pi-Star Chat (TG 31672) | Digital technology support channel dedicated to configuration chat, WPSD or Pi-Star update announcements, and general hotspot troubleshooting. |
| US Nationwide (TG 3100) | Broad monitoring channel encompassing traffic, dynamic routing, and statewide linked nets across all fifty US states. |
| Worldwide (TG 91) | International calling channel used to monitor global traffic, bridge contacts with foreign amateur stations, and test multi-country network routing. |
History with Radio W8USR
The SkyBridge hotspot was officially integrated into the W8USR active radio station equipment inventory on May 25, 2026. Installed during a control room digital modernization phase, it replaced older experimental hardware to provide a more reliable, permanently bridged connection to the BrandMeister and TGIF networks. Since its installation, the unit has operated continuously, maintaining high-uptime metrics for the station's dedicated digital voice monitoring operations.
