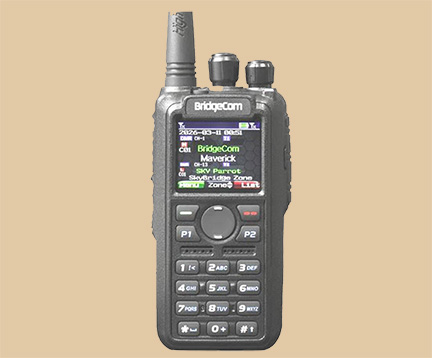

BridgeCom Maverick Dual-Band DMR/Analog Handheld
Technical Specifications
The BridgeCom Maverick is an elite, high-efficiency Dual-Band Digital Mobile Radio (DMR) and analog commercial handheld transceiver built on the robust AnyTone D890UV core platform. Engineered with an upgraded, fast-processing digital core architecture, extensive channel zones, and wide-range spectrum monitoring tools, this system acts as a high-powered mobile command center for the station workspace. The specialized engineering metrics include:
| Engineering Property | Manufacturer Technical Specification Value |
|---|---|
| Brand and Manufacturer | BridgeCom Systems, LLC |
| Core Device Platform | AnyTone D890UV architecture foundation |
| Operational Frequency Bands | VHF: 136 to 174 MHz • UHF: 400 to 480 MHz (Dual-Band agility) |
| Additional Receiver Blocks | Aviation Airband Receive capability • NOAA Weather Band scanning |
| Memory Channel Capacity | 4,000 distinct internal channels |
| DMR Database Capacity | Up to 500,000 individual contacts locally saved |
| Configured Channel Spacing | 25 kHz (Wideband) / 12.5 kHz (Narrowband) / 6.25 kHz (Very Narrow) |
| Frequency Step Increments | 5 kHz / 6.25 kHz |
| Frequency Stability Tolerance | Plus or minus 1.5 parts per million (ppm) |
| Antenna Port Termination | Standard SMA-Female connection (50 Ohms nominal) |
| RF Transmit Power Output | 7 Watts max output on VHF / 6 Watts max output on UHF bands |
| Operating Voltage Envelope | 7.7 VDC plus or minus 20 percent structural range |
| Advanced Audio Framework | Enhanced operational audio processing backed by hardware companding |
| High-Tier System Features | Crossband Repeat, Satellite Communication Support, Digital and Analog Voice Recording |
| Data and Location Tracking | APRS and GPS Real-Time situational tracking engines |
| Integrated Connectivity | Built-in wireless Bluetooth capability |
| Physical Chassis Dimensions | 5.08 x 2.40 x 1.54 inches (129 x 61 x 39 mm with battery pack attached) |
| Total Module System Weight | 0.62 pounds (282 grams total with battery and antenna elements installed) |
| Battery Pack Architecture | 7.4 Volt, 3100 mAh Lithium-ion cell featuring built-in USB-C direct charging |
| Thermal Temperature Limits | Minus 4 degrees Fahrenheit to 131 degrees Fahrenheit (Minus 20 degrees Celsius to plus 55 degrees Celsius) |
Station Role
The BridgeCom Maverick serves as the primary mobile and digital command unit for the W8USR station. While fully capable of functioning as a high-powered dual-band handheld on the go, it is primarily utilized at a low-power setting of 1 watt to link directly with the station's SkyBridge hotspot, anchoring W8USR’s day-to-day Tier II Digital Mobile Radio (DMR) capabilities. This efficient setup provides crisp, digital access to worldwide talk groups without draining the battery or overcrowding the local RF environment. When taken past the range of the hotspot, it seamlessly bridges the gap to traditional analog repeaters, utilizing its built-in cross-band repeat capabilities to function as a deployable local gateway that extends the operational footprint of the shack during field deployments or emergency communications.
Its expansive 500,000 contact capacity keeps the complete worldwide DMR database locally accessible at all times, ensuring rapid identification of incoming stations. Furthermore, integrated APRS/GPS tracking and built-in Airband reception allow the radio to serve as an all-in-one situational awareness asset, keeping W8USR connected across terrestrial, digital, satellite, and aviation networks.
History of the Part
The Maverick was added to the W8USR station inventory on July 2, 2026, marking a strategic shift toward modern, fast-processing digital hardware. Developed by BridgeCom Systems on the robust foundation of the AnyTone D890UV platform, the Maverick represents the generation of handheld transceivers that solved the historic sluggishness of early digital rigs by introducing a highly responsive upgraded processor. It succeeded older DMR platforms by integrating long-requested quality-of-life hardware revisions—most notably USB-C charging for field flexibility and specialized audio companding to counter the harshness of high-noise environments. Purchased directly from BridgeCom on July 1, 2026 as a cornerstone component to integrate with modern digital hotspots and satellite tracking arrays, this specific unit continues to serve as a reliable daily operator, blending high-end commercial durability with versatile amateur radio experimentation.
