W8USR - SWL on HF Portal

In addition to active two-way amateur radio voice and digital operations, the W8USR radio station workbench features a dedicated Short Wave Listening (SWL) deck. High-Frequency shortwave listening provides an entry point to monitor global information networks, tracking faint utility channels, automated markers, and international broadcast stations bouncing across the ionosphere. Signal characteristics are meticulously logged using the classic SINPO rating scale to track reception quality before coordinating official verification QSL cards.

SWL Monitoring Hardware & Bench Configuration

The reception capabilities of the operating deck utilize both high-performance physical intermediate-frequency circuitry and advanced software processing systems:

Primary Receiver: Icom IC-7300 direct-sampling HF/50 MHz transceiver.
Spectral Coverage: Monitoring spans the entire HF shortwave spectrum alongside the 50 MHz (6 meters) VHF band.
Display Interface: Real-time high-resolution touch panel waterfall spectrum scope.
Antenna Architecture: Multi-band wire arrays configured for optimal low-angle skywave signal capture.

PC Logging Workflow & Digital Archive Infrastructure

Data administration at the shortwave monitoring position runs on an independent master PC station. This logging station operates completely detached from the radio hardware to maintain optimal tracking isolation:

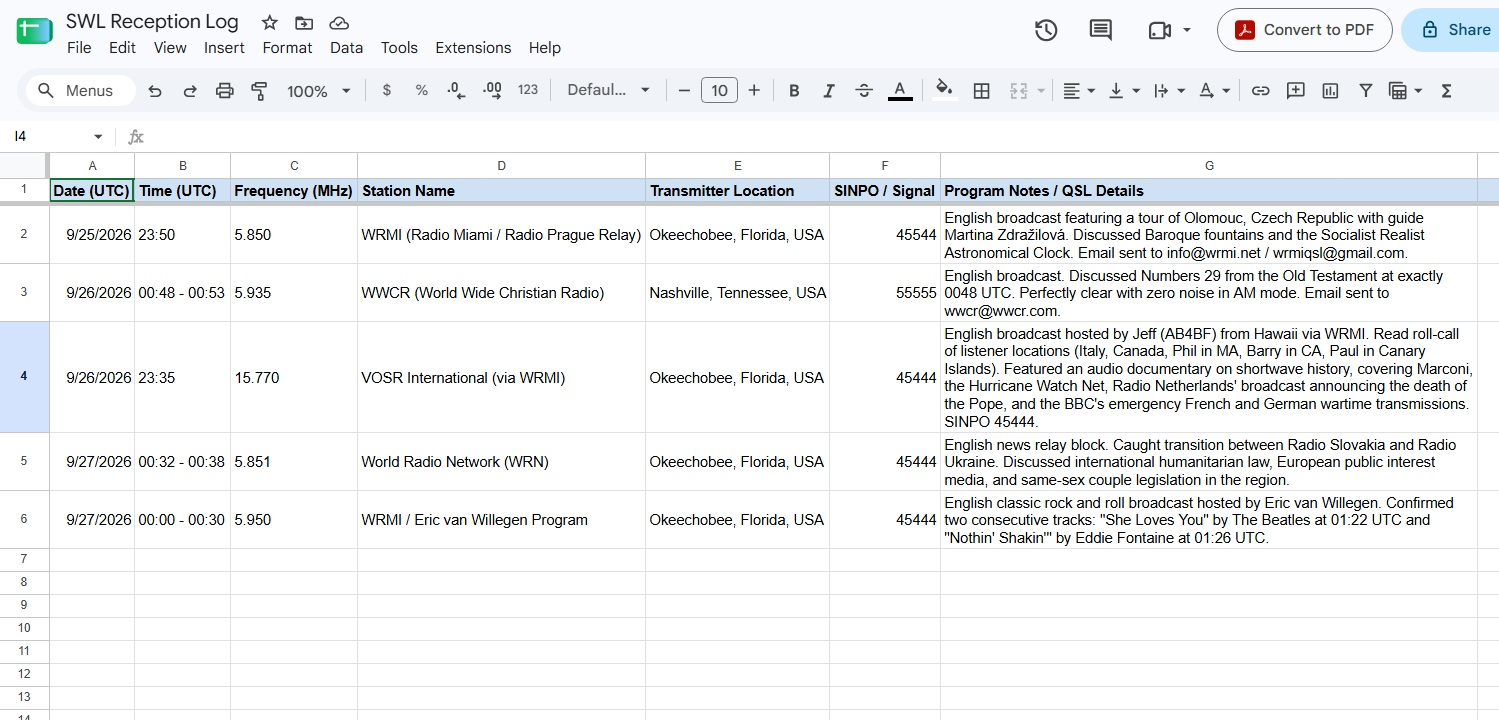

Master Spreadsheet Matrix: Managed via a central Google Spreadsheet consisting of three distinct data tracking environments:
- My Logs: Captures incoming telemetry updates, frequency coordinates, and timestamps.
- Station Addresses: Maintained as a directory for mail-in reception reports and administrative contacts.
- My eQSL Gallery: Holds verified logs linked via live database hyperlinks to the master image assets.
Cloud Image Repository: Backed by a secure Google Drive repository containing high-resolution images of collected QSL confirmation cards, cross-referenced directly from the gallery index.

Representative Sampling of Monitored Stations

While the station scans across the full high-frequency spec guidelines, the following table lists a static representative sampling of standard continental relays and international broadcast stations captured on the operating deck. This overview demonstrates the diversity of target networks tracked in the master digital logging database without reflecting every active entry:

Sample Station Network	Signal Profile & Identifier	Monitoring Operational Purpose
WRMI (Radio Miami International)	International Relays & Broadcasts	Radio Prague International and special music programming logs
WWCR (World Wide Christian Radio)	High-Power Continental US Transmitter	Domestic propagation testing and time slot monitoring
Voice of Report (VOSR) International	Global Programming via WRMI Relay	Tracking low-angle skywave stability from southern relays
World Radio Network (WRN)	Multi-Language News Feed Network	Global informational analysis and network verification
WRMI / Eric van Willegen Program	Specialist Music Transmission via WRMI	DX logging, music fidelity tests, and SINPO target practice

The SINPO Signal Metric Reference Chart

To secure a verified station validation card, tracking observations must follow the strict five-part international telemetry framework:

S (Signal Intensity): Rating the raw RF voltage strength hitting the receiver front end from level 1 to 5.
I (Interference): Evaluating adjacent channel bleeding or co-channel overlapping utility signals.
N (Noise): Quantifying local static discharge, power-line buzz, or severe weather sferics.
P (Propagation): Documenting ionospheric cyclic fading or sudden plasma chorus disturbances.
O (Overall Merit): The final calculated quality score determining the message readability matrix.
